MCW-M8 Series(English)

  MCW-M8 Series is a splicer with 4K/60Hz、splicing、switching、audio、multi-screen display and many functions all in one. Highly integrated professional 4K and 2K digitai interfaces、single-port support 4K@60Hz input;With the use of professional image processing chip and more convenient mode of operation which can widely used in stage performances and various occasions.

  A single unit of this machine can reach 20.8 million pixels,The widest output support for a single deviceis 30720 pixels.and the highest FPS is 120Hz.

  Greatly increased output bandwidth(support EDID management,which can be dispiayed pixel to pixel according to the LED screen.

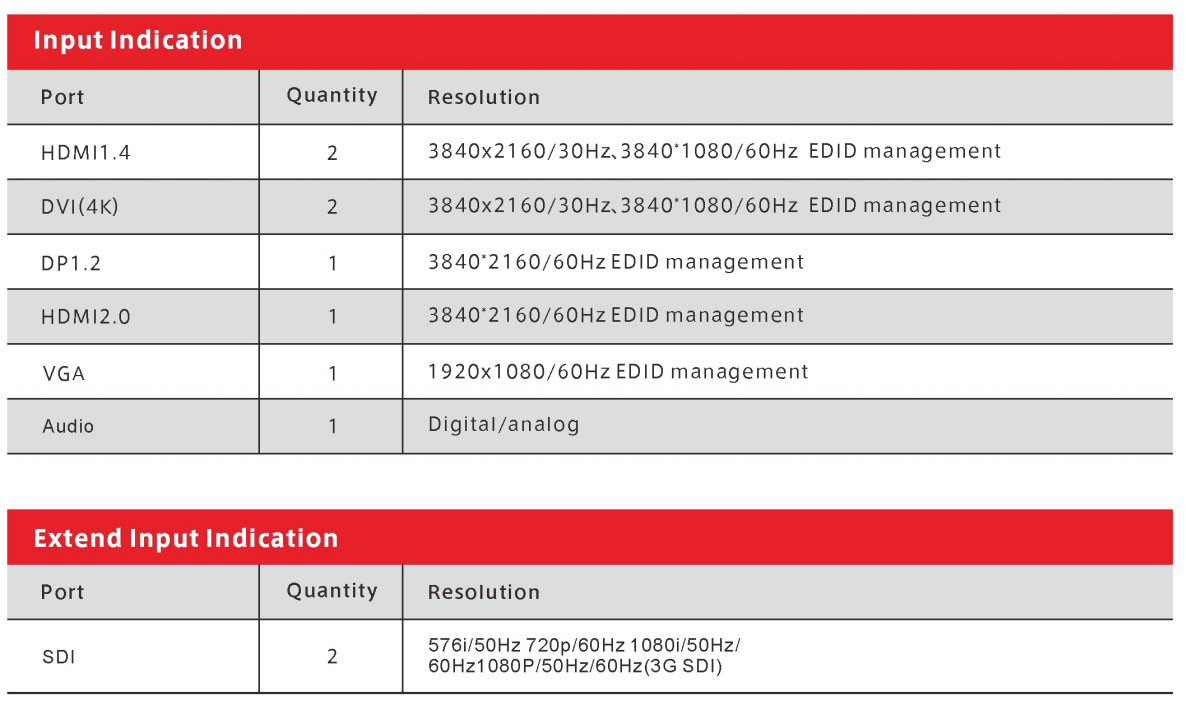

  Input interface of the device: SDI*2, DP1.2M、HDMI2.0*1、4K-DVI*2, 4K-HDMI*2 、Audio4*1, Support RS232 and network control to facilitate peripheral equipment control.
